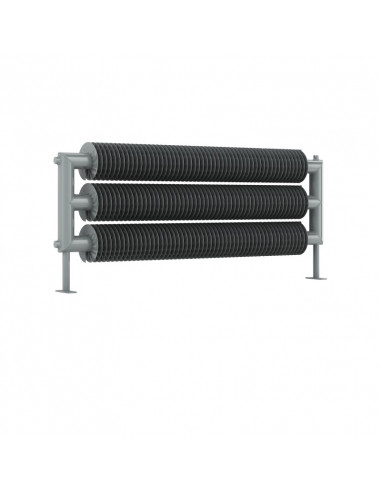

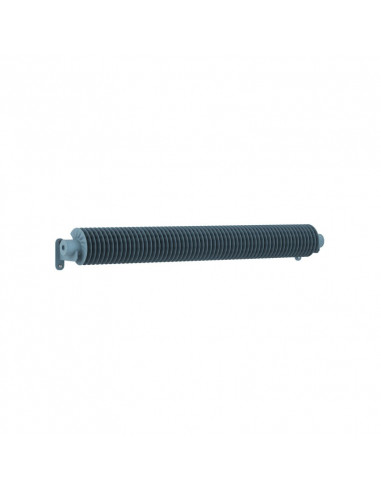

CORAL ROUND, Central Heating

CZK4,265.00
HOTHOT
HH0014
Information:
Select your colour from HOTHOT colour chart (it opens in a new window)

COLOR CHART

Sizes and heat output
Connection
Thermostatic set standard:
Quantity

  • Material: Steel tubes 20 mm / Steel profiles D30 x 35 mm
  • Connection threads: 4 × G1 / 2 "
  • Test overpressure: 1.3 MPa
  • Max. Operating pressure: 1.0 MPa
  • Max. Operating temperature: 110 ° C

Sizes and heat output:

695x450x120 mm, 302W
695x500x120 mm, 331 W
695x600x120 mm, 389 W
695x750x120 mm, 470 W
935x450x120 mm, 396 W
935x500x120 mm, 434 W
935x600x120 mm, 510 W
935x750x120 mm, 627 W
1135x450x120 mm, 473 W
1135x500x120 mm, 518 W
1135x600x120 mm, 609 W
1135x750x120 mm, 753 W
1335x450x120 mm, 583 W
1335x500x120 mm, 635 W
1335x600x120 mm, 754 W
1335x750x120 mm, 908 W
1535x450x120 mm, 638 W
1535x500x120 mm, 700 W
1535x600x120 mm, 823 W
1535x750x120 mm, 1007 W
1775x450x120 mm, 759 W
1775x500x120 mm, 832 W
1775x600x120 mm, 978 W
1775x750x120 mm, 1189 W
